Slit Lamp

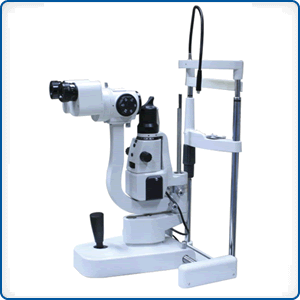

Slit Lamp 5XI
Specification:
*5 step drum magnification
*Microscope Type: Galilean stereoscope
*Eyepiece 12.5x
*Total Magnification 6x(33mm);10x(22.5mm);16x(14mm);
25x(8.8mm);40x(5mm).
*Diopter Adjustment: -5D~+3D.
*PD: 55-75mm.
*Slit width: 0mm~14mm continuously adjustable.
*Slit Height 1mm~14mm continuously adjustable.
*Aperture Diameter149,,5.5,0.3(mm).
*Slit Angle: 0~180.
*Filter: heat absorption,grey,redfree,cobalt blue.
*lllumiination Bulb: 6v20w halogen bulb.
*Power Supply: 110V/220V;60/50Hz;5.

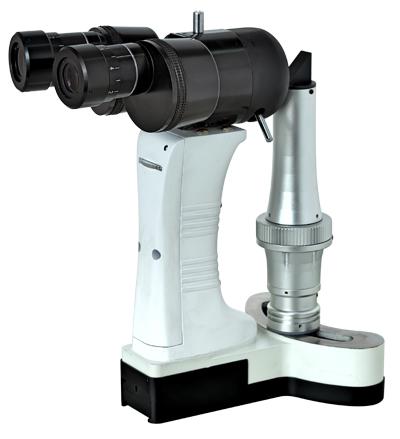

YZ3 Handheld Slit Lamp
Specifications
Microscope Type Converging microscope
Objective
Magnifications
Two steps  magnifications
Magnifications 10X16X
Diopter Adjustment ±8D
Pupil Distance 50mm75mm
Working Distance 60mm
Slit Width 012mm continuously
adjustable
Diamater of
Light Spot
0.2mm1mm5mm12mm
Filter Color Temperature
Compensation,
Redfree,Cobalt Blue
Slit Angle ±30°
Light Source LED

SChiotz type Tonometer
 The design theory is to use pointer to press cornea and then indirectly get the intraocular pressure.Each division on the scale corresponds to 1/20 mm corneal depth.
Characteristics
*Schiotz type

*All the parts contacting corner are stainiess steel which is anti-acid and does no harm to issues.

*The instrument is safe,reliable,applicable and convenient.


Goldman Applanation Tonometer
 The instrument is designed on the basis of Goldman tonometer.Both T type and R type are available.
*When used with Slit Lamp,it can be used to examine the eyes and measure the ocular pressure.
*Accurate measurement and total tolarance is less than   0.066Kpa(0.55Hg)
*Directly get the ocular pressure.
*The measured ocular pressure is not affected by hardness of eye.
*The affected ocular volume is just 0.56 cubic millimeter.
*Adjustable measuring ensured the long-term stability and reliability.


Tonometer For Carl Zeiss Type Slit Lamp
designed on the principle basis of Goldman tonometer.
It can be connected with slit lamp(Carl Zeiss type).

Specifications:
*Measuring Range:0~1064 Kpa
*Light Ring Displacement:1.532=3.06mm
*Diameter of Prism Head: 7mm
*Moving Range of Prism Head:3mm

1  2  3  4  5  6 last page/next page
