Slit Lamp

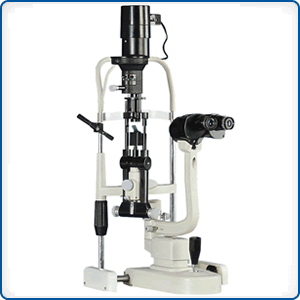

Slit Lamp C300
Specification:
Optic Head:
*Microscope Type: parallel
*Eyepiece 12.5x
*Total Magnification 6x(33mm);10x(22.5mm);16x(14mm);
25x(8.8mm);40x(5mm)
*Diopter Adjustment: -5D~+3D
lllumination
*Slit width: 0mm~9mm continuously adjustable
*Slit Height 1mm~8mm continuously adjustable
*Aperture Diameter9,8,5,3,2,0.2(mm)
*Slit Angle: 0°~180°
*Slit lnclination: 5°,10°,15°,20°
*Filter: heat absorption,grey,redfree,cobalt blue
*lllumiination Bulb: 12v30w halogen bulb
*fixation Bulb : red LED
Power Supply: 110V/220V±;60/50Hz;58VA
Motorized Table:
*Height: 640mm~860mm adjustable
*Weight: 20kgs
*Maximum Load 50kgs

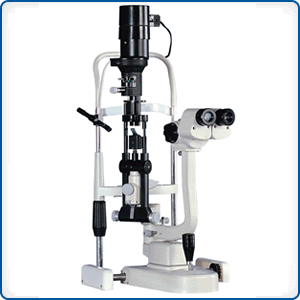

Slit Lamp C400
Specification: Optic Head: *Microscope Type: Converging Stereoscope *Total Magnification: 10x,16x,(10xeyepiece), 16x,25.6x(16x eyepiece) lllumination *Slit Width: 0mm~9mm continuously adjustable *Slit Height: 1mm~8mm continuously adjustable *Apertuer Diameter: : 9,8,5,3,2,0.2(mm) *Slit Angle: 0~180 *Slit lnclination: 5,10,15,20 *Filter: heat absorption,grey,redfree,cobalt blue *lllumination Bulb: 12V30W halogen bulb Power supply: 110V/22V/10V;50/60Hz,58VA Motorized Table: *Height: 640-860mm adjustable *Weight: 20kgs *Maximum Load: 50kgs
