Microscope

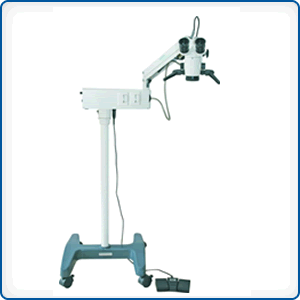

MODEL 02U1
Specification:
Focus of objective lens:F=200(optional 175,250,300,350,400)mm
Magnification of eyepiece: 12.5*/18B(optional 10*eyepiece)
Visual angle of eyepiece: 45°, 90°
Magnification (f200): 5.3x,8x,12x
Diameter of visual field(f200):38,25,17(mm)
lllumination: 6°+0° coaxial illumination
lllumination bulb: 12V/100w halogen lamp
lllumination control: continuously adjustable
Lux on objective plane: >=30,000lx
Range and speed of focusing:30mm,2mm/s
Power supply: AC220v±10%/50Hz±1%
AC110V±10%/60Hz±1%

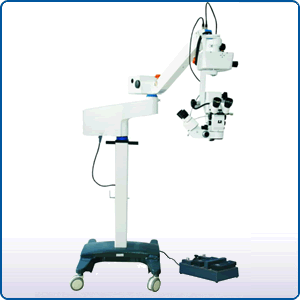

MODEL 02U2
*Assistant microscope can be rotated to opponent microscope.
*Internal beam splitter can be connected with teaching tube and CCD system.
*Equipped with three different objective lensesf200/f250/f300and applicable in ophthalmic surgeryorthopedic surgery and hand surgery.
*Oblique illumination can also be used as slit illumination and slit width is adjustable.
Specification:
*Diopter Adjustment: 7D
Pupil Distance:50mm75mm
*Magnifications for Main Microscope. f200: 4X 6X 10X 16X 25X
f250: 3.2X 5X 8X 12.8X 20X. f300:2.7X 4.2X 6.7X 11X 17X
*Magnifications for Assistant Microscope f200: 6X 10X 16X
f250: 5X 8X 12.8X f300: 4.2X 6.7X 11X
*Maximal Resolution:112 LP/mm
*Illumination Source: 12V/100W Cold Reflection Halogen Bulb for Medical Use
*Illumination Type: 6+0coaxial illumination of cold light source and 25Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable and its angle is 360rotation.
*Coaxial Illumination: 50000lx * Oblique Illumination: 45000lx
*Reaching Radius of Arm: 1040mm* Adjustable Vertical Range: 850mm1350mm
*Fine Focusing Speed and Range: 2mm/s50mm* Speed for X/Y and Range: 2mm/s50mm50mm
*Input Voltage: AC220V22V/50Hz1Hz AC110V11V/60Hz1Hz* Power: 330VA
*Fuse: AC250V T4.0AAC125V T8.0A* Executive Standard: GB9706.1-2007type I* Total Weight: 210kg
