| A/B SCAN |
|

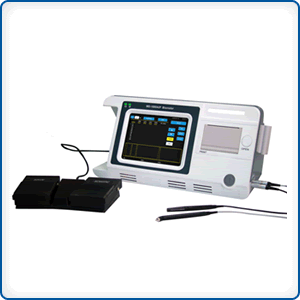

MD1000A Biometer
MD1000P pachymeter
MD1000A/P |
 |
A-BIOMETER (for MD-1000A & MD-1000 A/P):
*Probe: 10MHz with Fixation Red Light
*Total Gain: 100dB with an adjustable range of 0 ~ 50dB
*Biometry Accuracy: ¡Ü¡À0.06mm
*Resolution: 0.01mm
*Measuring Range: 14 ~ 41mm
*Measuring Mode: Contact, Immersion
*Measuring Parameters: Anterior Chamber Depth,
Lens Thickness, Vitreous Length,
Axial Length
*5 Different Measuring Modes: Automatic (for Normal, Dense
Cataract, Aphakic and Pseudo-aphakic) & Manual
*8 Groups of Readings for Average, SD
*IOL : SRK/T, SRK-II, BINKHOST- II, HOLLADAY, HOFFER-Q and HAIGIS
PACHYMETER (for ODM-1000P & ODM-1000 A/P):
*Probe Frequency: 15 ~ 20MHz
*Display Resolution: 1¦Ìm
*Biometry Accuracy: ¡Ü¡À5¦Ì
*Measuring Scope: 200 ~ 1200¦Ìm
*Average for Each Reading (256 individual readings)
*Multiple Corneal Maps with Graphical Display
*Automatic Calibration and Probe Test |
|
![]() |

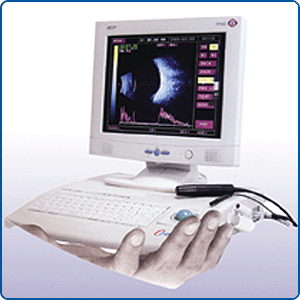

| ODM
2100 |
|
 |
B Mode
Frequency:10MHZ
Displaying mode:B,B+A,B+B
Scanning Range:Zoom 31-63mm
Gray Scale:256
A mode:
Frequency:10MHZ
IOL:6 formula
|
| |
![]() |
| ODM
2200 |
|
 |
B Mode:
Frequency:10MHZ
Resolution:Axial<=0.2mm,Lateral<=0.4mm
Display mode:B,B+A,B+B
Scanning Range:Zoom 31-63mm,
8 scale selectable,scanning angle:53°
Gray Scale:256
A Mode:
Frequency:10MHZ
Biometry accuracy:<=0.06mm
Displaying resolution:0.01mm
Iol:6 Formula
|
|
|
|
|
